Ultracompact Optical Emission Spectrometer

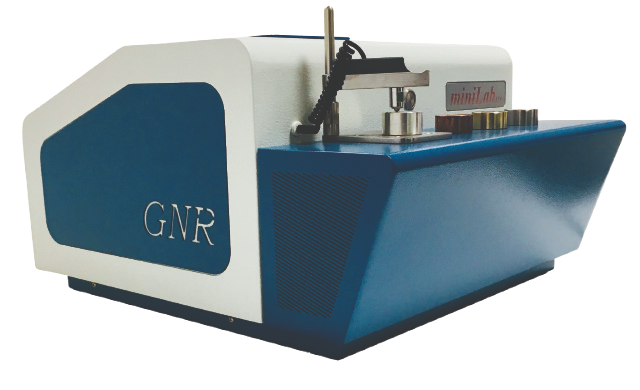

S1 MiniLab 150

Ultra-Compact
Outstanding Precision
Affordable

The S1 MiniLab 150 is a compact multi-matrix optical emission spectrometer designed for metal production and processing environments. It combines ease of use, low maintenance, and strong analytical performance in a lightweight format suited to everyday quality control.

Enquire Now

Technical
Specifications

Built for high analytical reliability and industrial-grade metal analysis with fast workflows and multi-matrix flexibility.

Applications

Fe, Al, Cu, Ni, Zn, Ti, Mg, Co, Pb, Sn

Detector

CMOS

Wavelength Range

170 – 460 nm

Optical Chamber

Argon purged with proprietary low-consumption device

Software

EOS® proprietary software

Alloy Database

UNI, ASTM, DIN

Power Supply

110/220 V AC, 16 A, 1 kW

Dimensions

500 × 590 × 310 mm

Weight

35 kg

Key Highlights

Advanced Performance for
Reliable Metal Analysis

Ultra-compact and lightweight OES platform

CMOS detector for strong luminosity and analytical performance

Argon-purged optic with low argon consumption

Reduced measurement time

Compact footprint and 35 kg weight

Good price-to-performance ratio

Applications

Applications Across Diverse Metal Industries

  • Small foundries & machine shops
  • Incoming material inspection
  • Metal recycling verification
  • Basic quality control
  • Educational institutions

Download complete product brochure and technical specifications
